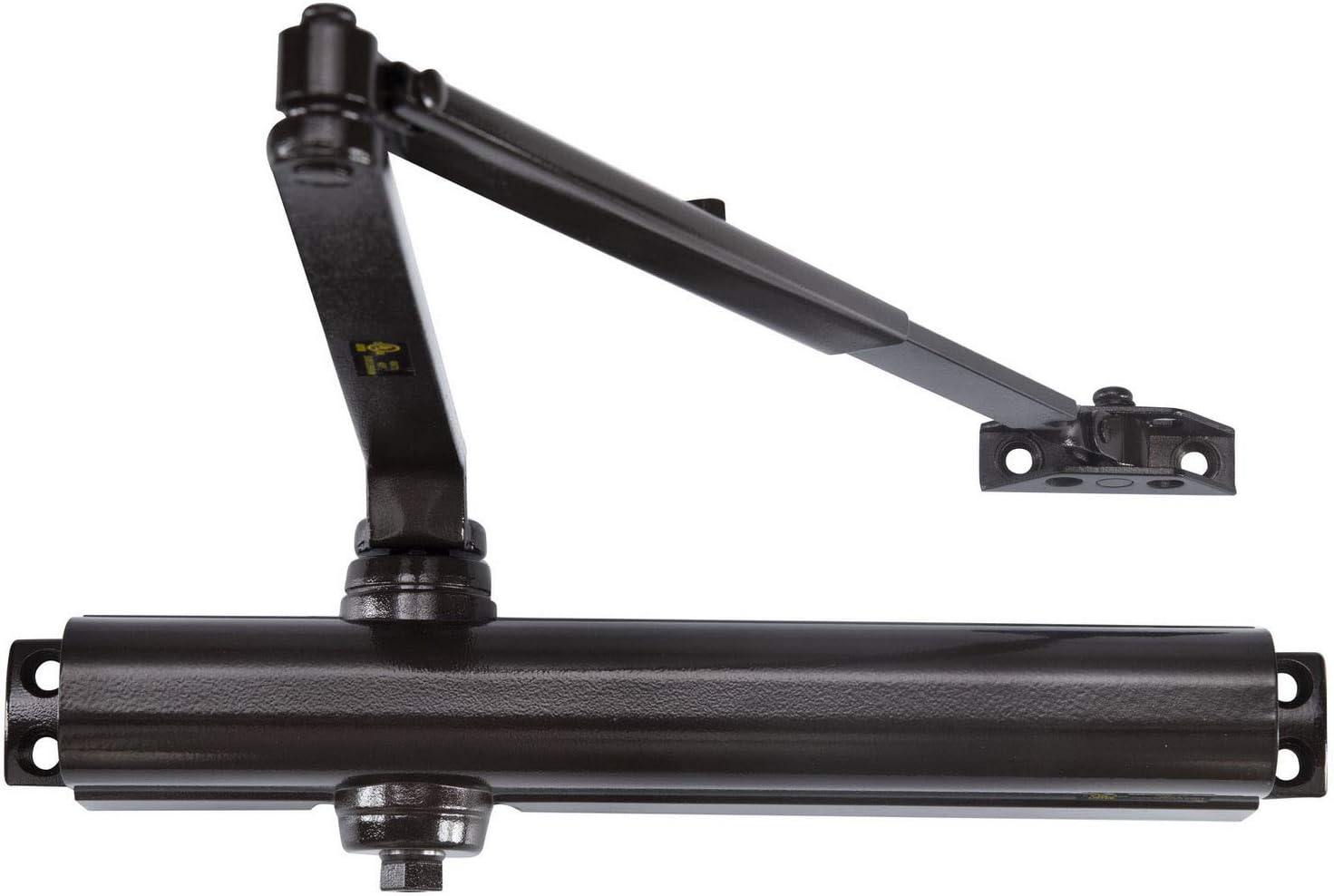

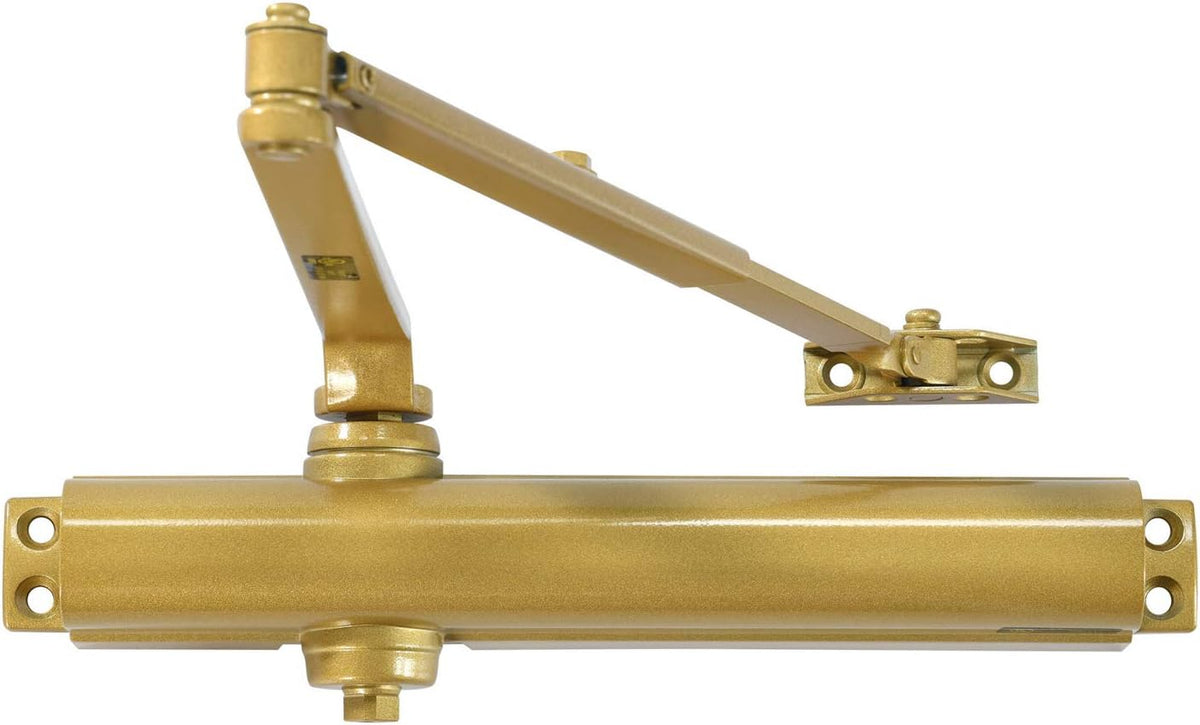

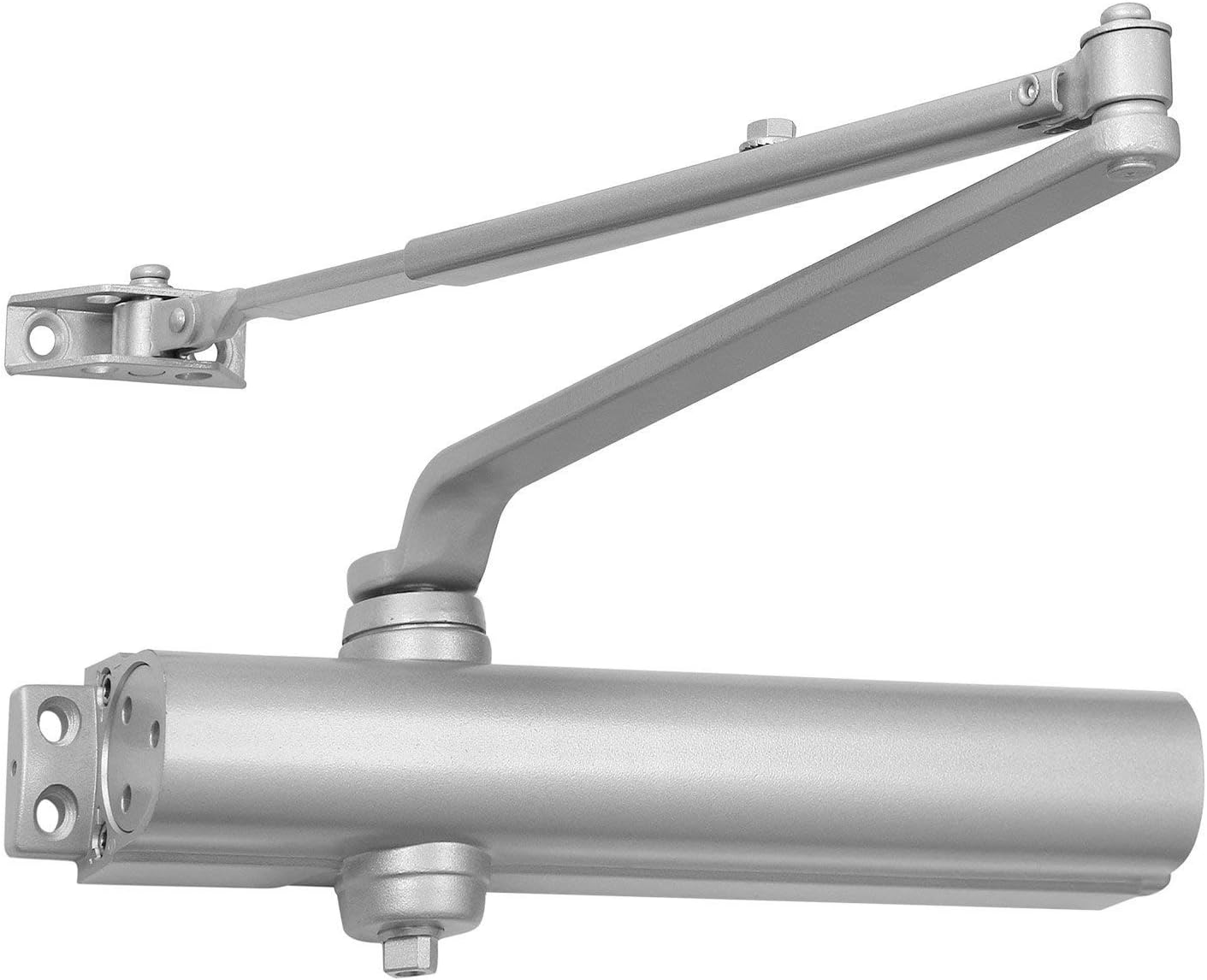

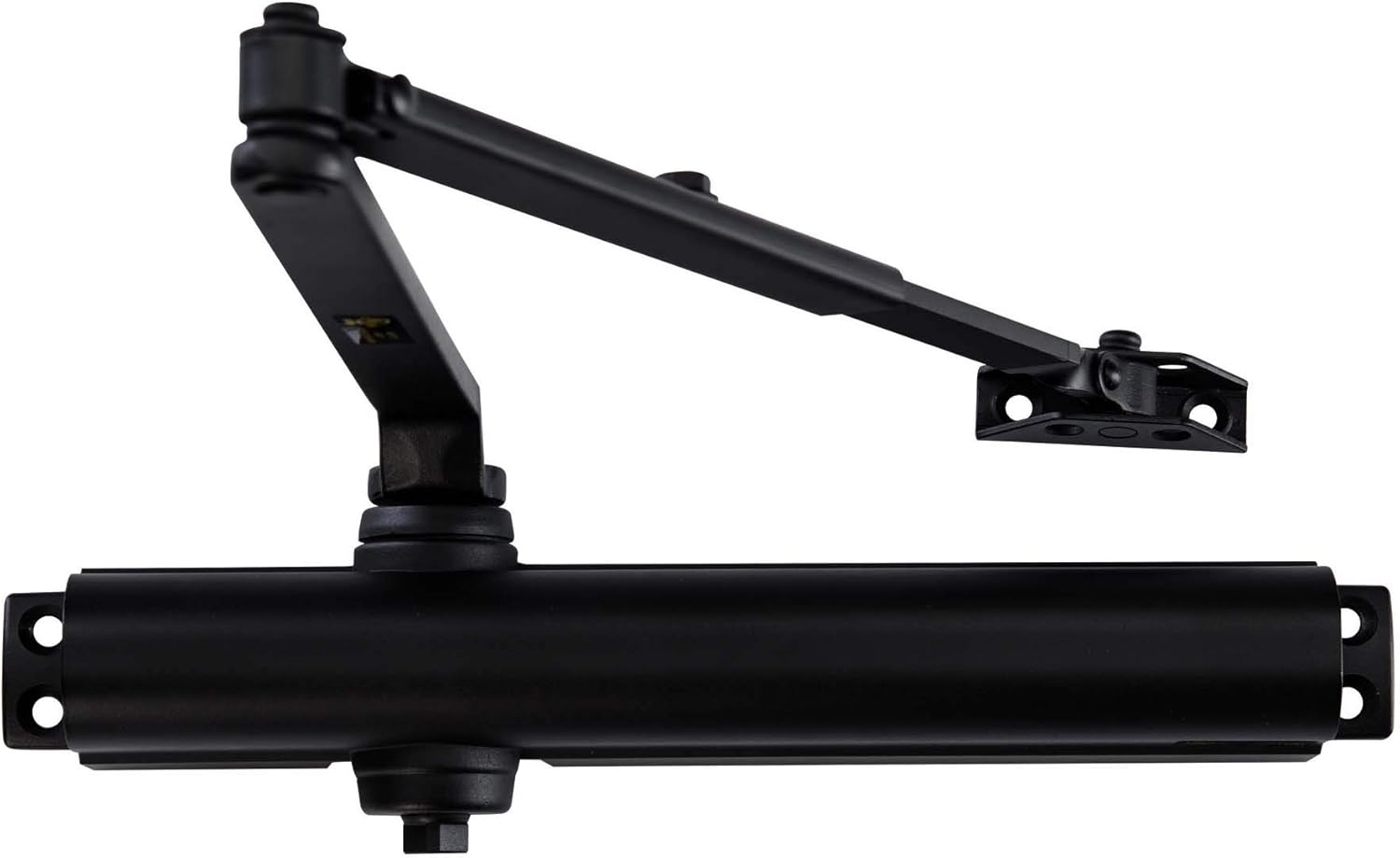

Surface Mounted Grade 1 Cast Aluminum Door Closer P5262
Surface Mounted Grade 1 Cast Aluminum Door Closer P5262
USAGE: Enjoy Automatic Closing and Latching while maintaining Quiet and Secure. Spring Eliminating the need for adjustment right away, the factory Pre-Set as a #3 and the 'back check' and Delayed Action valve comes standard on this unit. The commercial-grade arm closes the door slowly enough to allow a graceful entrance and exit, and won’t interfere when opening.
TRAFFIC: Perfect for heavy and high traffic entrances such as aluminum storefronts, factories, schools, restaurants, and other public places. Can be used both indoors and out.
MATERIAL: Grade 1, Heavy Duty, Cast Aluminum to support long-term strength and use. Steel arm. Powder Coated Finished Body to enhance corrosion resistance. Heat Treated Piston.
CERTIFICATION: ANSI/BHMA 156.4 and UL Listed. ADA Compliant. Grade 1: This one has actually surpassed a test of 2 million + cycles!
COMPARABLE CLOSERS: LCN 1460FC, Norton 8501, Dorma 8600, Cal-Royal CR801, Hager 5200, Sargent 1431, Dor-O-Matic SC80, Corbin Russwin 5000, Yale 3501, Lawrence LH816 & Inox Hardware DC8516
LYNN HDWR LH8016 (Slim Line) - Perfect solution for Heavy / high traffic entrances and doorways such as aluminum storefronts, factories, schools, offices, restaurants, and other public spaces. Designed for a modern automatic door closer appearance
SPECIFICATIONS:
--COLOR: DARK BRONZE (US10B, DURONOTIC, OIL RUBBED BRONZE)
--Grade 1, Heavy Commercial Traffic
--Non Handed
--Cast Aluminum. Steel arm. Heat Treated Piston and Pinions.
--Powder Coated Finished Body to enhance corrosion resistance
--4 Adjustable Valves (Latch, Sweep, Backcheck, & Delayed Action)
--Tri-Pack (Regular, Top Jamb, and Parallel Arm Mount)
--Adjustable Power Size Range 1-6 (Spring Pre-Set as #3).
--Use for doors weighing up to 330lbs and 54 inches wide
PACKAGE INCLUDES:
--Grade 1 Heavy Duty Commercial Door Closer
--Machine and Wood Screws to enable installation in various applications.
--Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
--High Impact Molded Cover
--Installation Guide & Mounting Template
CERTIFICATIONS:
--BHMA 156.4 Grade 1 Door Closer--tested for 2,000,000+ cycles
--UL 3 Hour Fire Listed:
--ADA Compliant
WARRANTY: LIFETIME
COMPARABLE DOOR CLOSERS:
LCN 1460FC, Norton 8501, Dorma 8600, Cal-Royal CR801, Hager 5200, Sargent 1431, Dor-O-Matic SC80, Corbin Russwin 5000, Yale 3501, Lawrence LH816 & LYNN Hardware LH8016, Inox DC8516
Other LYNN Hardware Closers:
LH9016 = Extra Heavy Duty Door Closer
LH8016 = Heavy Duty Door Closer
LH7016 = Medium/Heavy Duty Door Closer
LH6003 = Medium Duty Door Closer
LH5003 = Light/Medium Duty Door Closer
